VigorAP 962C Punto de acceso wifi 6 y AC dual band

Interface

LAN Port

1x 2.5GbE Base-T, RJ-45

PoE

802.3at (in)

Antenna

5x Internal PiFA DB
Gain: 4.9 dBi for 5GHz, 4.5 dBi for 2.4GHz

Button

1x Factory Reset Button

DC Power Jack

1

Security Lock

1

WLAN

WiFi 6

2.4GHz Standard

IEEE 802.11b/g/n/ax

5GHz Standard

IEEE 802.11a/n/ac 802.11a/n/ac wave 2/ax

2.4GHz Link Rate

Up to 600 Mbps

5GHz Link Rate

Up to 2400 Mbps

Max. Number of Concurrent Active Clients

256 (128 per radio band)

Operating Mode

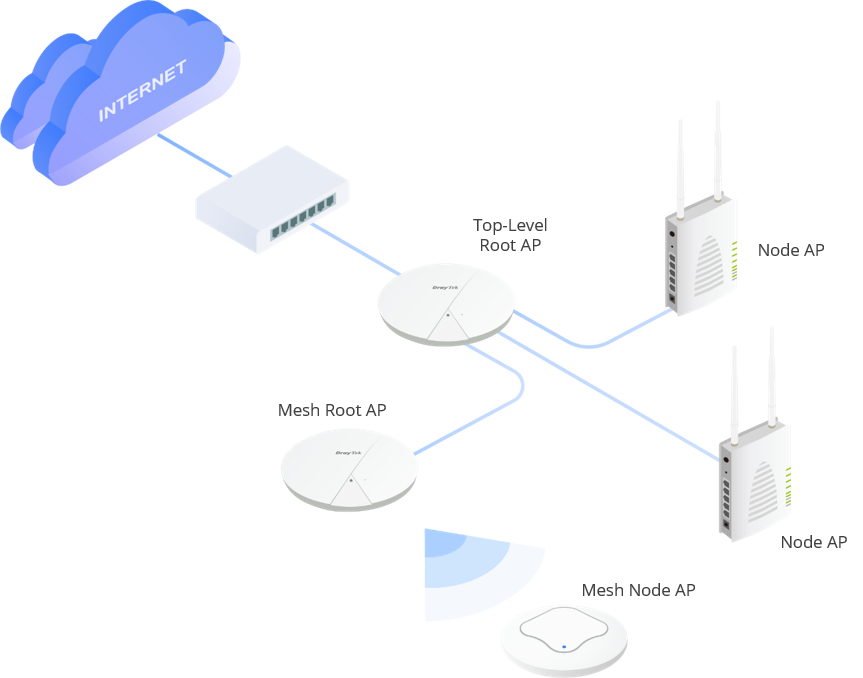

AP, Mesh Root, Mesh Node, Range Extender

Roaming

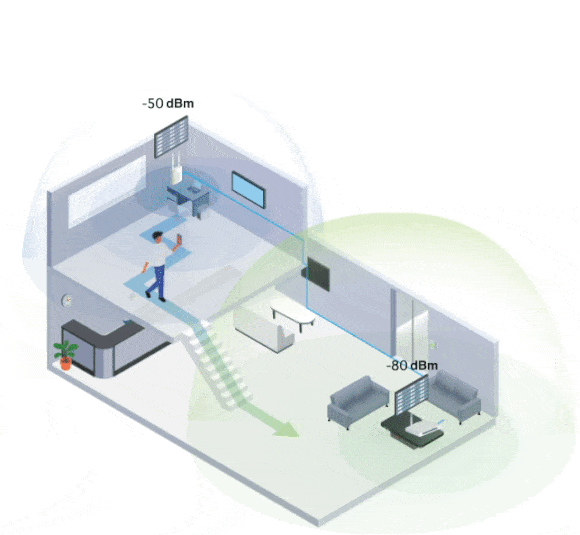

AP-Assisted Roaming, PMK-Caching, Pre-Authentication, 802.11r

802.11v

802.11k

AirTime Fairness

Band Steering

Auto Channel Selection

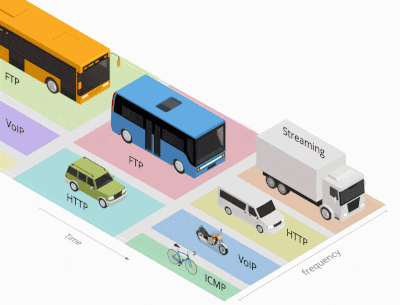

OFDMA

Max. Number of SSID

16 (8 per radio band)

WDS

Max. Client Numer

256 Max.

Connection Time Control

WMM

IGMP Snooping

Security

Security Mode

WPA3, WPA3/WPA2, WPA2, WPA2PPSK, WPA2/WPA, OWE, WPA, WEP, None

Authentication

Personal, Enterprise

WPS

PIN, PBC

Hidden SSIDs

MAC Address Filter

Up to 256 entries

Wireless Client Isolation

Mobile Device Management

Application

Built-in RADIUS Server

RADIUS Proxy

PEAP, EAP-TLS

Hotspot Web Portal

DHCP

DHCP Server, DHCP, Client, DHCP Relay Agent

Static IP

MAC Clone

802.1q VLAN

Schedule

Auto-Reboot, Wi-Fi Up/Down, LED On/Off

Management

Local Service

HTTP, HTTPS, Telnet

Configuration

Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root

Firmware Upgrade

HTTP, TFTP, TR-069

Tools

Speed Test, AP Discovery, Statistics, Interference Monitor

Configuration Backup and Restore

Syslog

Mail Alert

SNMP

v1, v2c, v3

Managed by VigorConnect

Managed by VigorACS

Central AP Management

20 VigorAP

Physical

Environment

Indoor

Mounting

Ceiling Mount, Wall Mount, Desktop

Power Input

12VDC, 1.0A

PoE Power Input

48V, 0.32A

Max. Power Consumption

12 watts

Dimension

190 mm x 190 mm x 30 mm

Weight

390 g

Operating Temperature

0 to 40°C

Storage Temperature

-20 to 60°C

Operating Humidity

10 to 90% non-condensing

Certificate
